Compatible Cost-Effective Teardrop Pallet Racking System

Name: Compatible CostEffective Teardrop Pallet Racking System
Brand: Ironstone
Price: 0.85 USD

Wholesale Compatible Cost-Effective Teardrop Pallet Racking System from china suppliers

Brand Name : Ironstone

Model Number : V-TPR Model

Certification : RMI

Place of Origin : China

MOQ : 1*20ft

Price : USD$0.85/KG

Payment Terms : L/C, T/T

Supply Ability : 3000 Tons per month

Delivery Time : 15~25 days

Packaging Details : Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.

Name : Teardrop Pallet Racking System

Color : RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request

Column Size : 3.0"*3.0" with 15GA~12GA thick

Beam size : 2.5"~6.0" beam face with 16GA~14GA thick

Usage : General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage

Load Beam Size : 96", 108", 120", 144" , or Custom size

Upright Frame size : 96"~450"

Beam Load : 1000lbs~10000Lbs

Frame Load : 17200~27200LBS

Material Type : High Strength Steel/American Standard Steel

Contact Now

Compatible Cost-effective Teardrop Pallet Racking System

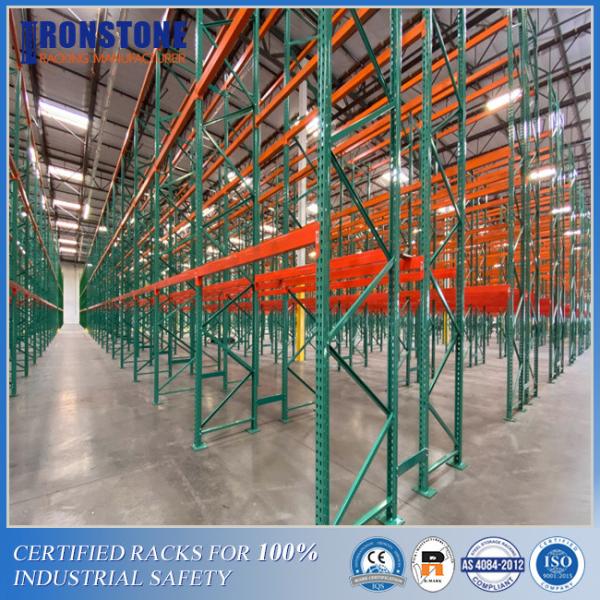

Teardrop pallet rack, which is popular among American and Canada, is a kind of selective pallet rack. It gets the name because the holes on the column of the upright are shaped like a teardrop. Pallets then rest on the horizontal load beams that are held in place by mounting clips.

Because the clips on teardrop configurations can be quickly moved, the shelves can be easily adjusted to different heights to accommodate various load sizes. This is convenient for a warehouse that needs to store a wide variety of product sizes.

Name	Teardrop (US) Pallet Rack	Material	American standard steel
Depth	24" - 60"	Weight Capacity	1000-7000lbs/beam level
Width	48" - 156"	Height	96" - 432" or Customized
Frame Structure Type	Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate
Beam Type	2.5" - 6.25" Step Beam
Beam Connector Type	SP & SL Safety Locker
Surface finish	Powder Coating & Galvanized
Color	RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Application Environment	Normal Temperature or Cold Room (Max -40C)
Certification	RMI Certification, ISO9001, CE,RMI/AS4084-2012
Free Sample	Available
OEM, ODM	Available
Package	Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Delivery time	7~25 days as per order quantity
Accessories	Bolts and nuts, Upright protectors, decks, etc.
Assembly & installation	Detailed assembly instructions are available

Accessories

♦ Uprights

Teardrop upright frames are made of 14 or 16-gauge tubular steel with horizontal and diagonal bracing, including standard footplates. This upright has a greater carrying capacity and a longer use life, which is effective and durable for warehouses.

Compatible Cost-Effective Teardrop Pallet Racking System

♦ Step beams

Teardrop step beams are made of 14 gauge, 15 gauge or 16 gauge rolling-formed steel. Lock safety clip is used to connect the uprights and beams, and there will make a clicking sound once the beam is secure, which can prevent beam from falling off.

Compatible Cost-Effective Teardrop Pallet Racking System

♦ Wire decks

The wire deck is suitable for storing cartons, boxes and other bulk cargoes. It can improve the storage space of shelves, reduce the risk of goods falling, and has the characteristics of beautiful appearance and easy installation.

Advantages

Teardrop pallet racking is able to satisfy the requirement of loading, can according to the requirements of the customer's different load-bearing and design meet the requirements of the bearing beam, the installed deck can effectively prevent the safe hidden trouble of high-altitude throwing items.

It can meet the storage and centralized management of large quantities and various cargoes, and cooperate with mechanical handling tools, achieving reasonable and orderly storage and handling work. The effectiveness for warehouse space utilization can effectively improve the utilization efficiency of the warehouse and is suitable for all types of cargo access.

Compatible Cost-Effective Teardrop Pallet Racking System
